Airframe Landings: 483Hours (as of October 2024)


Engines Engine Program: GE OnPoint

Loc.
Make
Model
Serial#
TSN
CSN


L
General Electric
Passport 20
904165
917
489


R
904166
917
489


APU Safran SPU300, S/N: SPUA-E1738014, TSN: 1,073 Hours

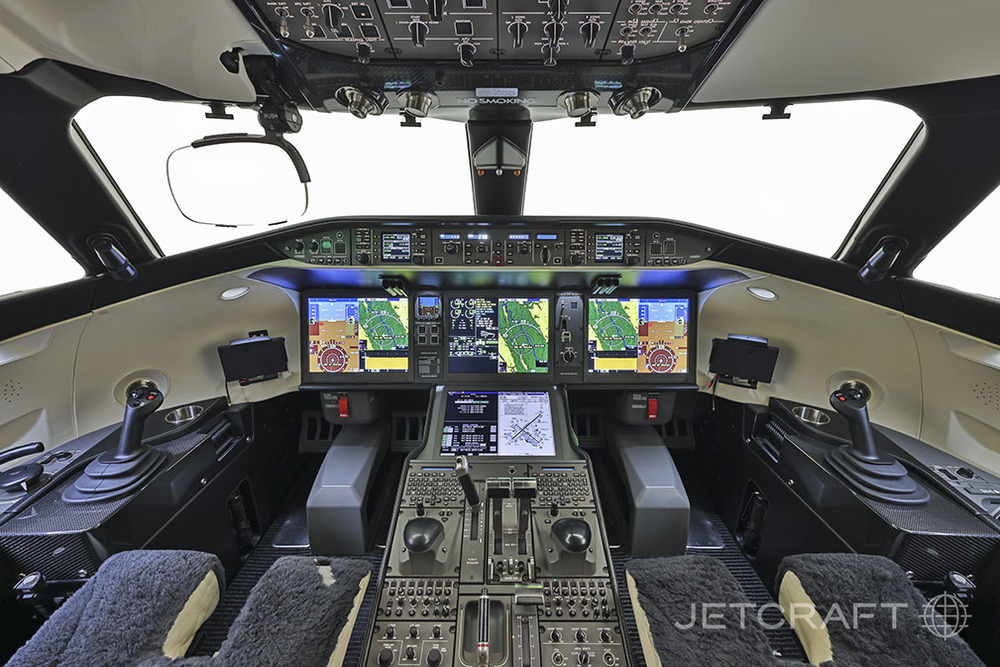

The Bombardier Global 7500 is equipped with Global Vision Flight Deck consisting of the Rockwell Collins ProLine Fusion Avionics Suite. A general summary of this aircraft s avionics suite is as follows:Electronic Flight Instrument System: Four Collins AFD-6520Inertial Reference System: Triple Honeywell Global Positioning System: Dual Collins GPS-4000SNavigation Radio: Dual Collins NAV-4000Head Up Display: Single Collins HGS-6600Enhanced Vision System: Single Collins EVS-3600Synthetic Vision System: Single Collins SVM-6110HVHF Communications: Triple Collins VHF-4000Distance Measuring Equipment: Dual Collins DME-4000HF Communications: Dual Collins HF-9031AWeather Radar: Single Collins RTA-4218Radar Altimeter: Dual Collins ALT-4000Transponder: Single Collins TDR-94D (Transponder 2) Traffic Surveillance System: Single Collins TSS-4100 (Transponder 1)Cockpit Voice Recorder: Single L3 Harris FA5000Flight Data Recorder: Single L3 Harris FA5000Emergency Locator Transmitter: Single ACR/Artex ELT-4000Lighting Sensor System: Single Collins WX-1000

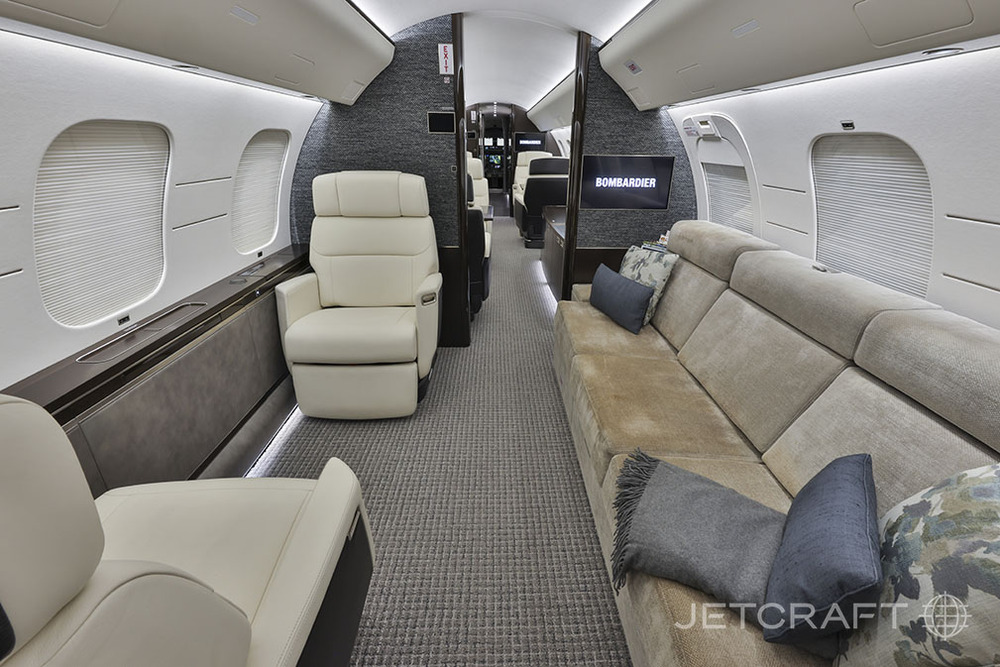

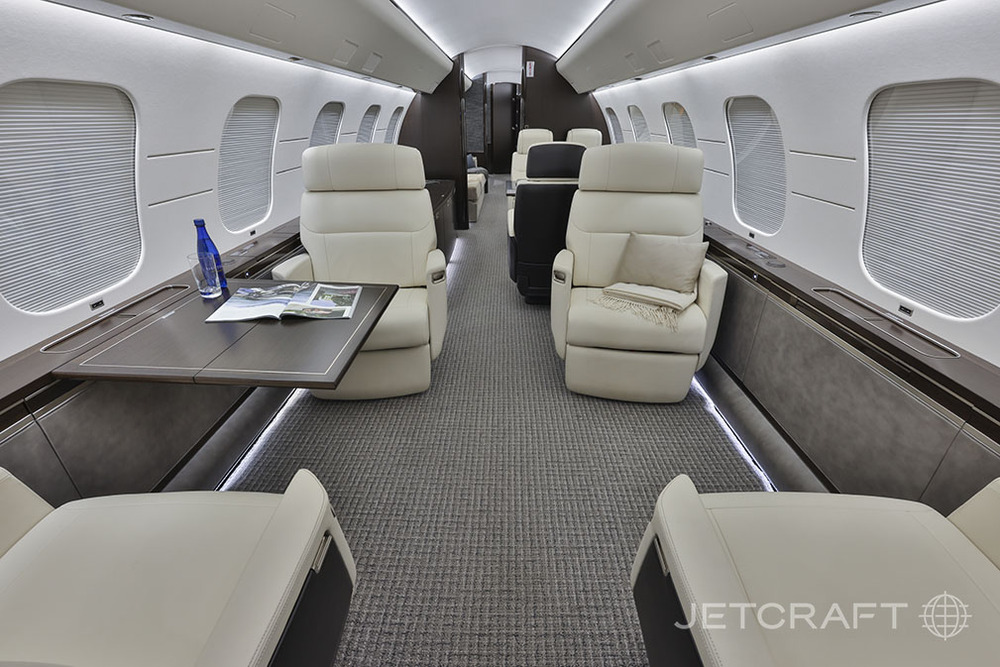

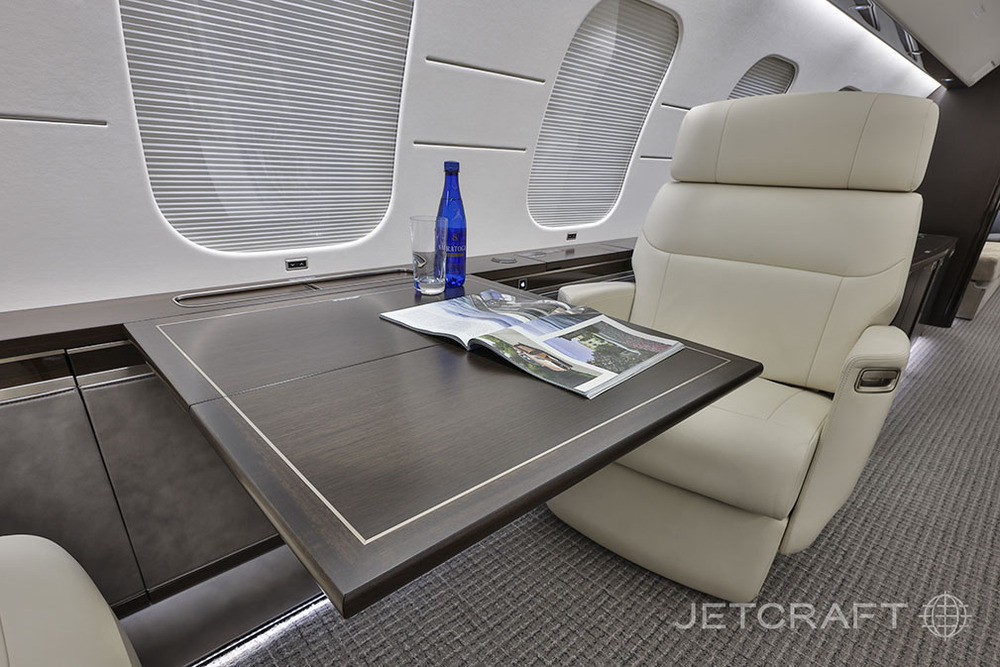

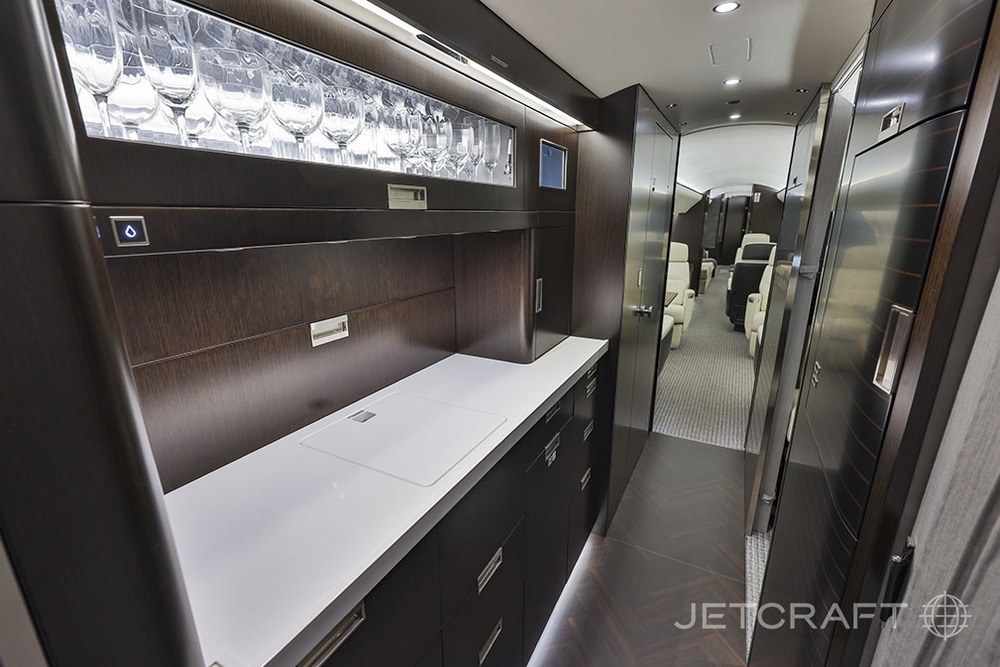

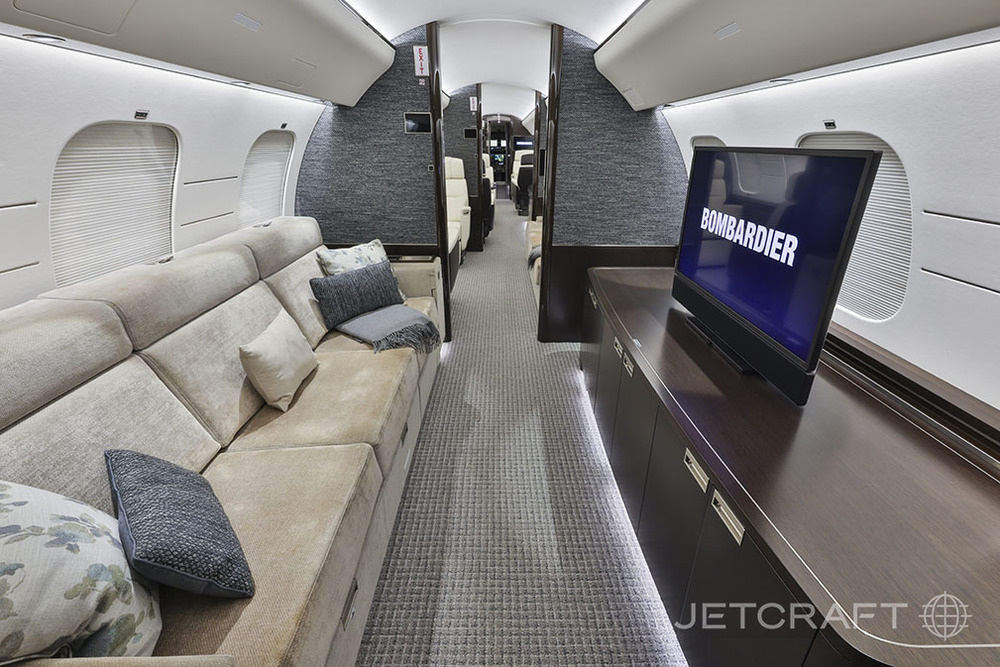

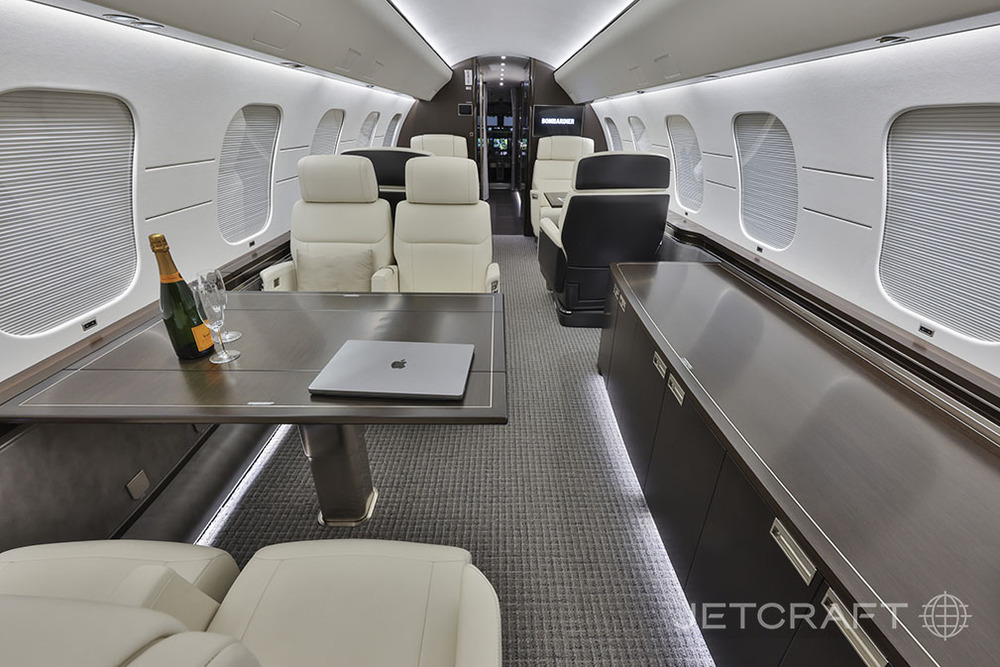

Number of Passengers: Fifteen (15) Passengers Galley Location: ForwardZone 1: Four (4) Place Executive ClubZone 2: Four (4) Place Dining/Conference Group Opposite CredenzaZone 3: Two (2) Place Club Seats Opposite Two (2) Place Divan (Forward Divan Seat Position not to be Occupied for Taxi, Take-off, and Landing)Zone 4: Three (3) Place Divan Opposite CredenzaLavatory Locations: Forward Crew and Aft ExecutiveCrew Rest: ForwardJumpseat: YesLast Refurbishment: Original Completion Bombardier Montreal - 2020

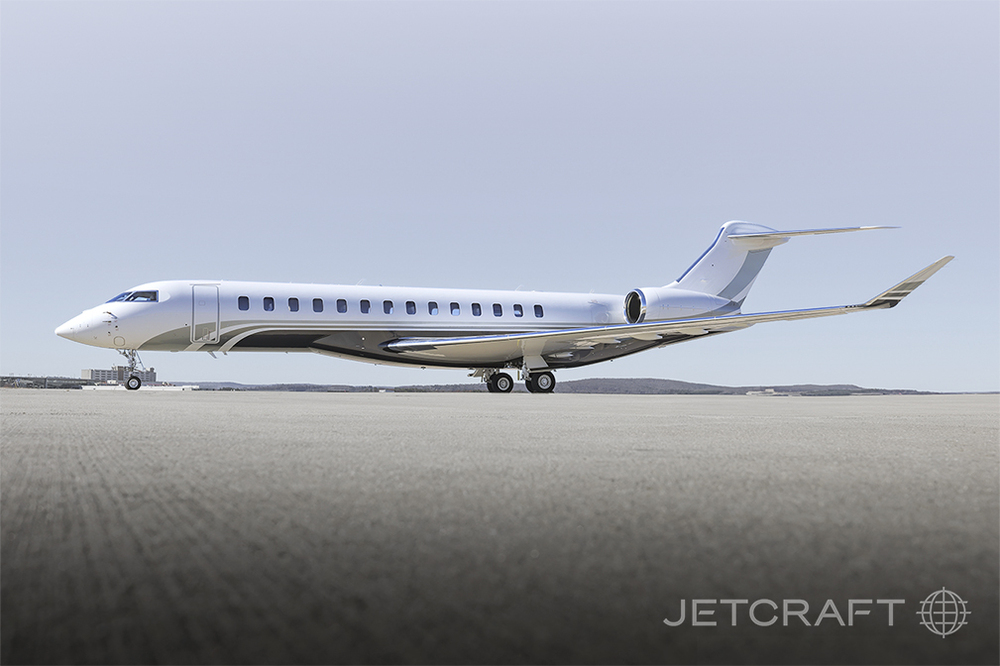

Base Paint Color: Matterhorn White (Upper Fuselage) Stripe Color: Dark Charcoal, Starlight Silver and Medium Silver (Lower Fuselage) Last Refurbishment: Original Completion Bombardier Montreal 2020

Certificate of Airworthiness: August 2019Maintenance Tracking: CAMP Certification: FAA Part 91
