HIGHLIGHTS
Fourteen/Fifteen (14/15) Passenger Configuration
FDR w/ QAR | CVR w/ Datalink Storage
Excellent Pedigree | One Owner Since New
Swift Broadband Wi-Fi
Exterior Repainted in 2014 | Carpet Replaced in 2020
No Damage History

Airframe:
Total Time: 4,345.7
Total Landings: 1,481

Engines:
ROLLS ROYCE BR700-710A2-20
Time: 4345/4345
Cycles: 1484/1481

APU:
MSP Gold
Honeywell RE-220 (GX)
Serial Number P-390
Total Hours* 4,409
Total Cycles* 3,890

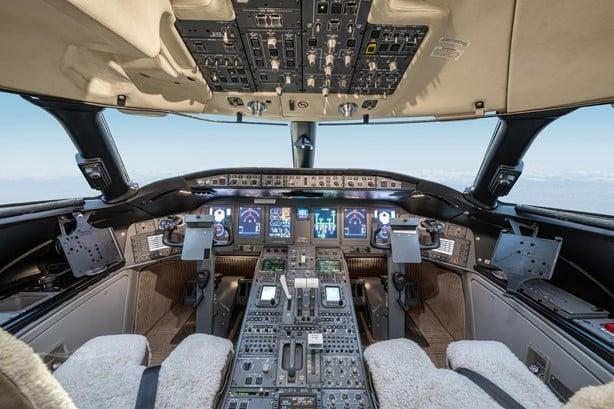

HONEYWELL 200 0XP INTEGRATED

AVIONICS COMPUTERS: Triple IC-800 Integrated Avionics Computers
CMS: Single Central Aircraft Information Maintenance System
COMM RADIOS Single
Honeywell RCZ-833M Integrated COM/ Ident Radios w/ Enhanced Mode S Diversity Transponders
CSD: Single Avtech CSD-714 SELCAL
DAQ: Quadruple Honeywell DA-810 Data Acquisition Units
DATA LOADER: Single DL-950
DME: Dual Honeywell RNZ-851 Integrated NAV Radios with VOR / ILS / MKR / ADF / DME
EFIS: Sextuple 8"x 7" DU-870 Color EFIS displays, 2 PFD/2 EICAS/2 MFD
EGPWS: Single Honeywell Mark V
FADEC: Single Full Authority Digital Engine Control System
FMS: Triple
Honeywell CD-820 Integrated Flight
Management System
GPS: Dual Honeywell GPS w/ SBAS LVP Approach
HF COMM: Dual Collins HF-9031 HF Communication System
IRU: Triple Honeywell HG2001GD03 Inertial Reference Units
MADC: Triple Honeywell AZ-950 Micro Air Data Computers
RADIO ALT: Dual Collins ALT-4000 Radio Altimeters
RMU: Single Honeywell Primus II RM-855 Radio Management Units
TCAS: Single Honeywell TCAS 2000 w/ 7.1
VHF COM: Triple 3rd VHF Comm Installation Honeywell RCZ-833
WX RADAR: Single Honeywell Primus 880 Color Weather Radar w/ Lightning Sensor System

Configuration / PAX:
Fourteen/Fifteen (14/15) Passenger Configuration

Seating:

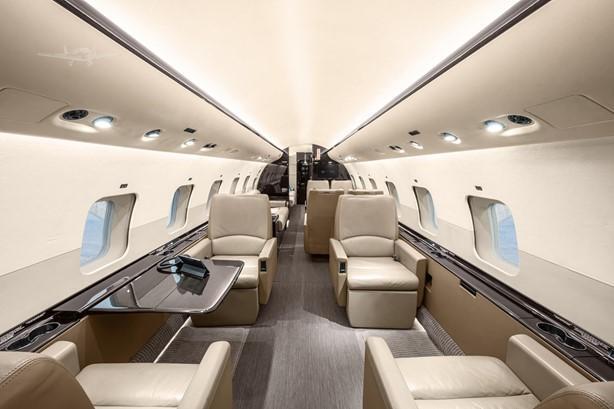

Forward Cabin: Four (4) Place Club w/ Fold-Out Tables

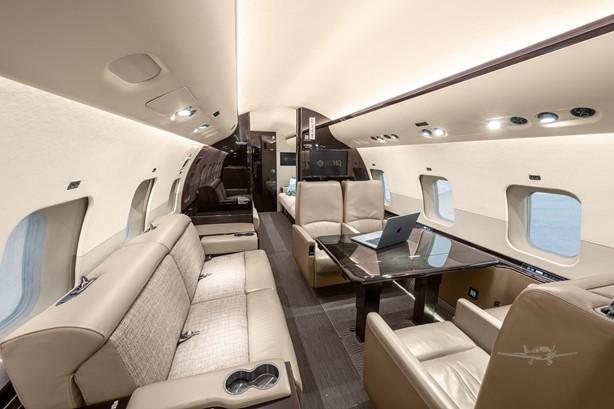

Mid Cabin: Four (4) Place Conference Group Opposite
Two (2) Place Divan

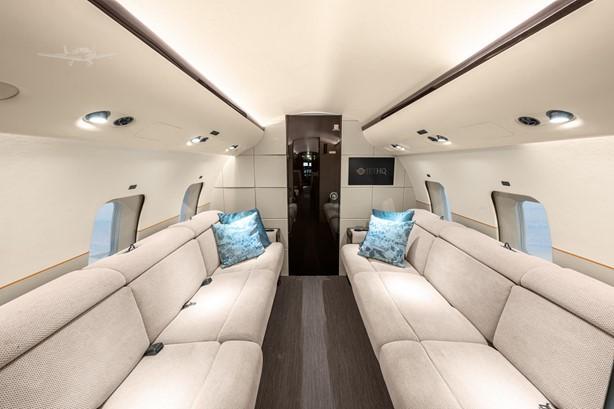

Aft Cabin: RH Three (3) Place Berthable Divan (Certified
for Two (2) w/ Removable Bulkhead Installed) Opposite
LH Three (3) Place Berthable Divan (Certified for Two (2))

Galley / Refreshment Location & Equipment:
Forward Full-Service Galley w/ TIA High Temp Oven,
Espresso Maker, and Microwave

Crew Rest / Jump Seat:
One (1) Jump Seat and One (1) LH Crew Rest

Lavatory:
One (1) Forward Crew Lavatory and One (1) Aft Lavatory
Connectivity/Entertainment:
Swift Broadband | Wireless Cabin LAN
Airshow 4000
230-volt/50 Hz outlets
23 Fwd, Mid & Aft Bulkhead LCD Monitors
Dual CD/DVD Player

Condition:
Original 2010. New Carpet 2020.

Base Paint:
White

Accent Colors:
Dark Blue & Peking Red

Condition:
Painted in 2014

230V/50Hz Outlets in Cockpit, Cabin & Lavatories
ADS-B Out
ARTEX B406-4 ELT w/ Nav Interface
Batch 3.3
Flight Deck Printer
FANS 1/A+ & RNP 4 30/30
Heads Up Display w/ Enhanced Vision System (SB700-34-050 to Support Batch 3)
Honeywell SSCVR Digital Cockpit Voice Recorder w/ Datalink Storage
Honeywell SSFDR Digital Flight Data Recorder w/ QAR
ICS-100 Iridium Telephone System
Logo Lights
MNPS, RNP4/5/10, RVSM Capable
Securaplane w/ Camera System
Teledyne Datalink System
Thrane & Thrane Aviator 700D SATCOM w/ Swift Broadband

Remarks:
INSPECTION DATE COMPLIED WITH NEXT DUE
Airframe 15 Month Oct-24 (at 4,345 HRS) Feb-26
Airframe 30 Month 12-Sep-22 (at 4,104 HRS) 08-Apr-25
Airframe 60 Month 30-Dec-20 (at 4,044 HRS) 08-Apr-25
Airframe 120 Month 30-Dec-20 (at 4,044 HRS) 08-Apr-30
Airframe 180 Month - 08-Apr-25
Airframe 240 Month - 08-Apr-30
Airframe 1,000 HR 14-Oct-19 (at 3,788 HRS) 4,788 HRS
Airframe 1,500 HR 13-Apr-18 (at 3,100 HRS) 4,500 HRS
Airframe 2,250 HR 14-Oct-19 (at 3,788 HRS) 6,002 HRS
Airframe 3,000 HR 13-Apr-18 (at 3,100 HRS) 6,000 HRS
Airframe 4,500 HR - 4,500 HRS
Ldg. Gear Insp. (120 M) 23-Jul-20 23-Jul-30
Ldg. Gear Rest. (240 M) - 23-Jul-30
